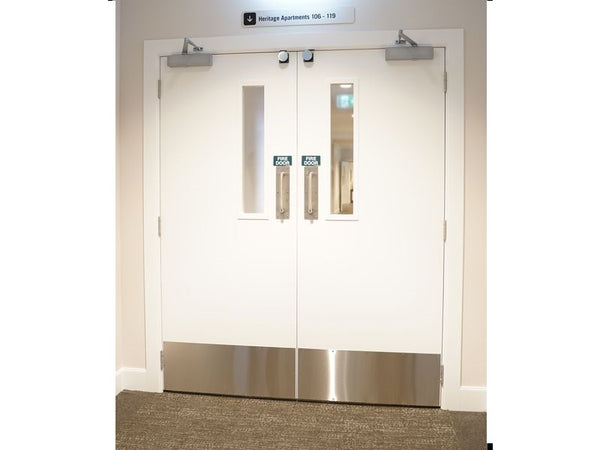

Best Doors PC60P Door Set -/60/30sm
The PC60P fire door utilizes insulated glazing to allow large glazed areas either in the door leaf as a vision panel or as an attached sidelight.
This product is now Obsolete : refer PR60
The Best PC60P door set is a door & glazing system with insulating glass which allows large sized glazing and timber detailing. The system includes a glazed single or pair hinged door hung in a timber or steel frame, with adjacent non-opening (fixed) sidelights. The glazing is also available as separate fire windows (See the FW60P datasheet).
The system has been approved using Pyrobel 16 glass.
The thickness of the PC60P door leaf is 50mm with an approximate leaf weight of 30kg/m2
Notes:

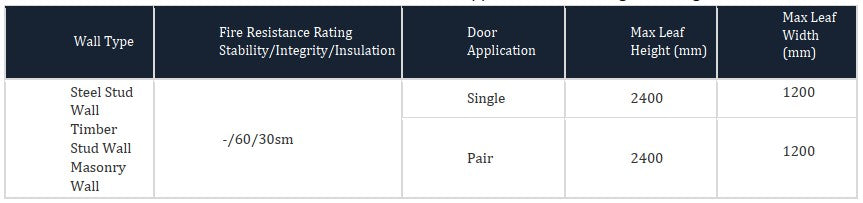

Please note that the maximum leaf width shown above is measured per door leaf.
The ‘sm’ above denotes that the door is available as a smoke control door set.
